Automotive Components Manufacturer in India

About
production facilities

The Company is capable of Forging and casting various grades of steels such as Stainless Steel, Tool Steel, Construction Steel, Alloy Steel, Low Carbon Steel, Medium Carbon Steel, High Carbon Steel and cast iron.
The names of some of the grades which consists of our product ranges are as under:- AISI-4130, AISI-4140, AISI-4340, AISI-4145, F-60, AISI 403, AISI 410, AISI 416, AISI 430, AISI 304, AISI 308, 17CrNiMo6, 30CrNiMo8, 30CrNiMo6, 13CrMo44, 20MnCr5, 40Ni6Cr4Mo3, 42CrMo4, 40Cr4Mo2, AISI316, En 353, En 8, En 9, En 14, En 15, En 18, En 19, En 24, EN 25, EN 31, EN 351, IS 1875, IS1570, SAE 1015, SAE 1016, SAE 8620, SAE 1040 etc.
Our company has the following infrastructure which assures our customers to get even intricate of forgings manufactured:

  • A comprehensive process control program which ensures Total Quality Management.
  • Capable of “Single Piece Forgings” up to 6000kgs.
  • Quality & Precision machining facilities at our Machining Division.
  • Our R & D has been actively concentrating on “Process Control System”upgrading.

MACHINERY SHOP

S.No. TYPE COMPANY CHUCK QTY

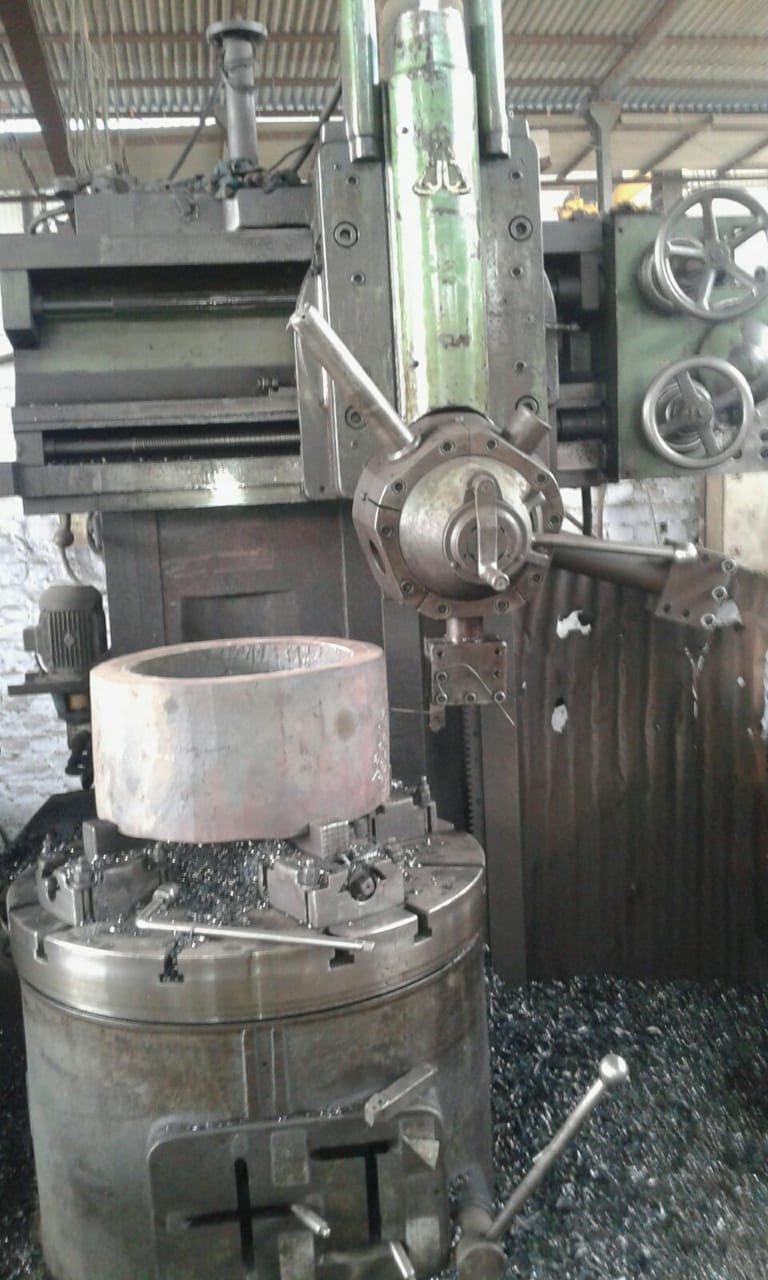

1 Vertical Lathe STANKO Ø 70 X 48 1 Nos.
2 Vertical Lathe NILES Φ 42 x 20 1 Nos.
3 Vertical Lathe Webster Bennett Coventry England Φ 48 x 20 1 Nos.
4 Vertical Lathe Jungenthal (KE21200) Φ 40 x 20 1 Nos.
5 Horizontal Lathe HEYLIGENSTAEDT & COMP. (G.M.B.H) Φ 36 x 165 1 Nos.
6 Horizontal Lathe Binns & Berry (Trident L.850) Φ 30 x 248 1 Nos.
7 Horizontal Lathe French make Φ 20 x 162 1 Nos.
8 Horizontal Lathe Top Engineers (punjab) Φ 36 x 122 1 Nos.
9 Horizontal Lathe Top Engineers (punjab) Φ 36 x 122 1 Nos.
10 Horizontal Lathe Top Engineers (punjab) Φ 30 x 67 1 Nos.
11 Horizontal Lathe Top Engineers (punjab) Φ 36 x 122 1 Nos.
12 Horizontal Lathe Top Engineers (punjab) Φ 36 x 71 1 Nos.
13 Horizontal Lathe Top Engineers (punjab) Φ 36 x 83 1 Nos.
14 Horizontal Lathe Top Engineers (punjab) Φ 36 x 228 1 Nos.
15 Horizontal Lathe Top Engineers (punjab) Φ 36 x 120 1 Nos.
16 Horizontal Lathe Top Engineers (punjab) Φ 36 x 285 1 Nos.

HEAT TREATMENT SHOP

S.No. Size Purpose
1 Bogie hearth furnace with temperature Controller & Recorder 900 x 1500 x 4000mm Normalizing,Heating & tempering
2 Oil quenching tank 1500 x 1500 x 3400 Quenching

NON DESTRUCTIVE TESTING SHOP

S.No. Model details of Ultrasonic Flow Detectors
A MICROSCAN PX-20 1MT (New Machine)
B MICROSCANPX 001 2MT
C ESM2MT (EEC Make)
D VIBROSONIC (FD-301)
E EECi New DIGISCAN DS 322

MPI MACHINE

A EEC I Flax EF -2Y
B Mangnoflex± Y7
C D.P TEST & Dye check (complete set)
